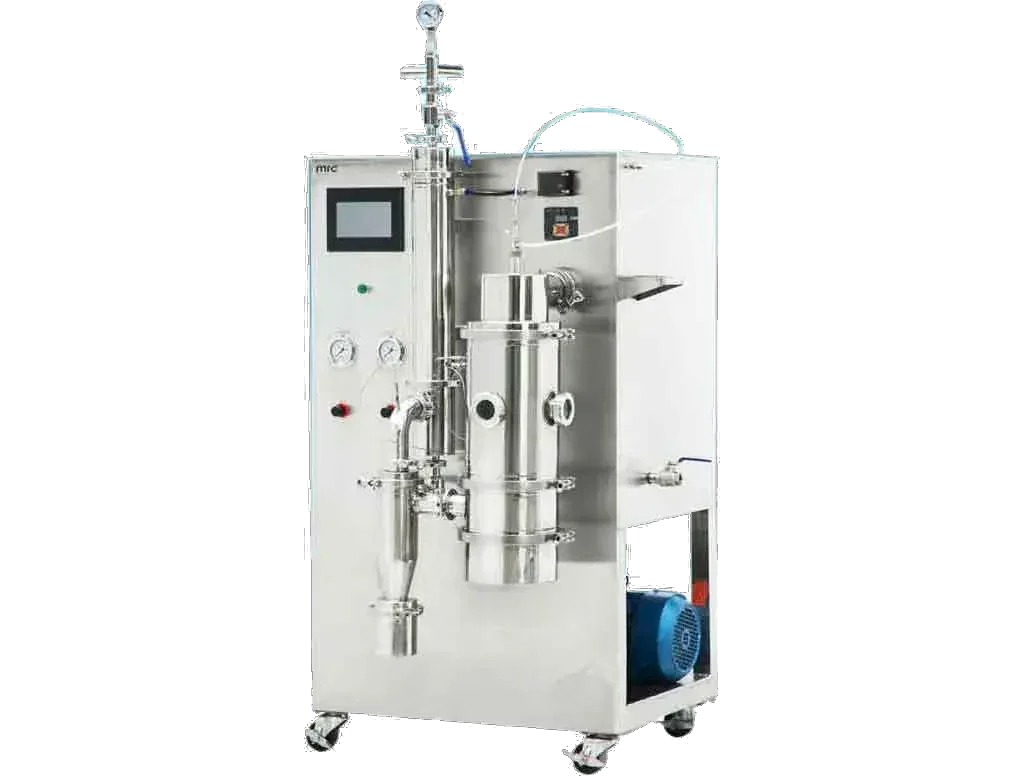

Vacuum Spray Dryer
Power: 7KW, 380V, 50/60 Hz
Evaporating Capacity: 1000 ~ 1500ml/h for water
Min. input temperature: 50°C
Heater power: 3500W
Spray gas: 4.2m3/h, 2-5bar
Nozzle jet: 0.7mm standard (0.5/0.75/1.0/1.5/2.0mm available)
Nozzle type: Two fluid nozzle
Possible particle size range: 1-25µm
Operation mode: Automatic/Manual
Max. Sample feed: 1500ml/hr
Minimum sample volume: 30ml
Spray chamber material: SUS-304 Stainless steel
Inlet temperature: 50 ~ 200°C
Cyclone separator material: SUS-304 Stainless steel
Body material: SUS-304 Stainless steel
Seal of cyclone/cylinder: Silicone
Outlet temperature: 45°C
Dimensions :1050x1050x1850mm
Weight: 170kg
Display: 7-lnch LCD display for Heat, Spray, Pump, Air pressure, de-blocker frequency
Thermal protection: Blower does not stop until temp <90°C
Deblocking: Automatic
Atomizer material: SUS 316 Stainless steel
