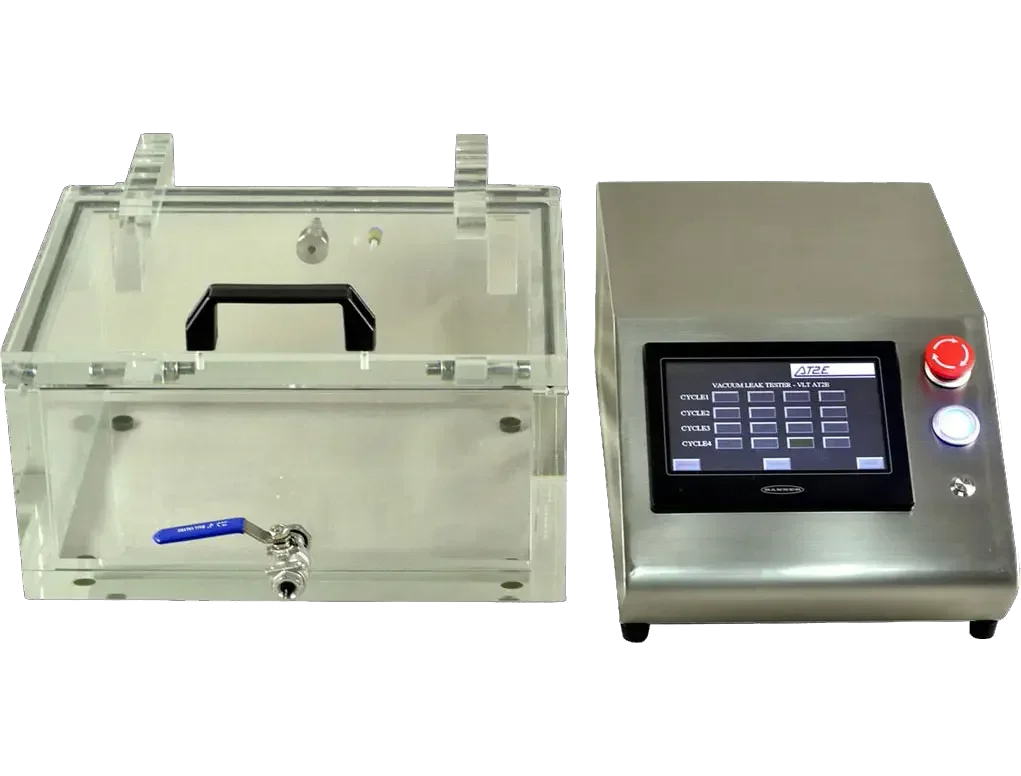

Vacuum Leak Tester (PLC Model)
(Air and water tight test box: vacuum test)
Tests on :
Bottles: Glass or PET and Preforms
Caps: Aluminium, other metal, plastic
Cans: Aluminium, others
Pots: caps, film, blisters etc.
Vacuumadjustable up to- 999mbpressureup to 1 bar
Box withdimensions upon request
Box made of polishedtransparent PMMA(very rugged)
Easy to use and safe by touch screen PLC Control Panel
Dynamic display: Testing status / Date and time
Display: Product name / Operator / Lot No. / Sample No.
User defined test cycle (up to 16 modes). Pre-define up to 4 steps of each test. Vacuum level and holding time adjustable
For each step. Satisfies different kinds of testing request Easy operation, only to select the pre-defined mode for starting a test no need to set the parameters every time
10 operators and 30 products memorisable
Lot No. and Sample No. editable
Review of the testing curve
RS 232 C output
Accuracy: 0.5% of the measure
Delivered with high performance vacuum pump
Runs with6 barnetwork
Quick and easy verification and calibration
VLT PLC can also be used as a vacuum desiccator with high control over the pressure.
