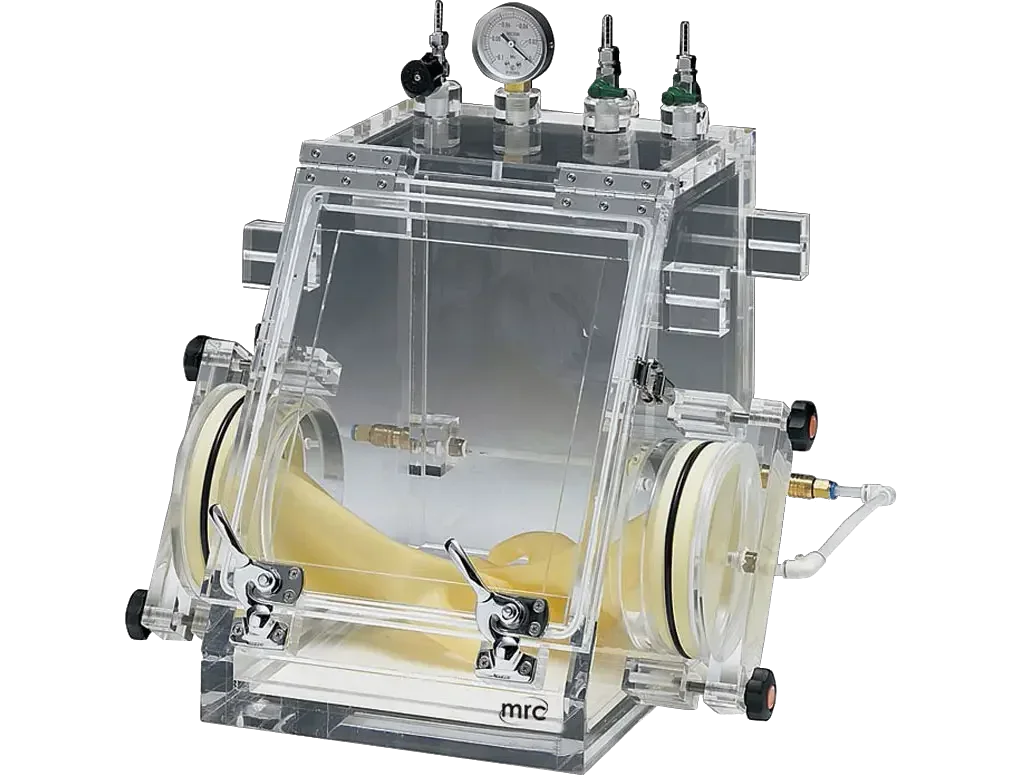

Excellent transparent view with acrylic material
The stand to put glove port cover during operation is equipped.
Glove port I.D: 140mm
Vacuum gauge range: 0~-0.1MPa
Air-supply valve on main body: needle valve, nozzle diameter 9mm
Air-exhaust valve on main body: ball valve, nozzle diameter 9mm
Air-exhaust valve on glove port: ball valve, nozzle diameter 9mm
Gasket material: silicon
Glove material: natural rubber
piping tube: nylon, O.D 8mm× I.D 6mm
Main body: 526W×463D×500Hmm
Internal dimension: 240W×158D(upper)/340D(lower)×360Hmm
Volume:25L
Weight: 20 Kg
