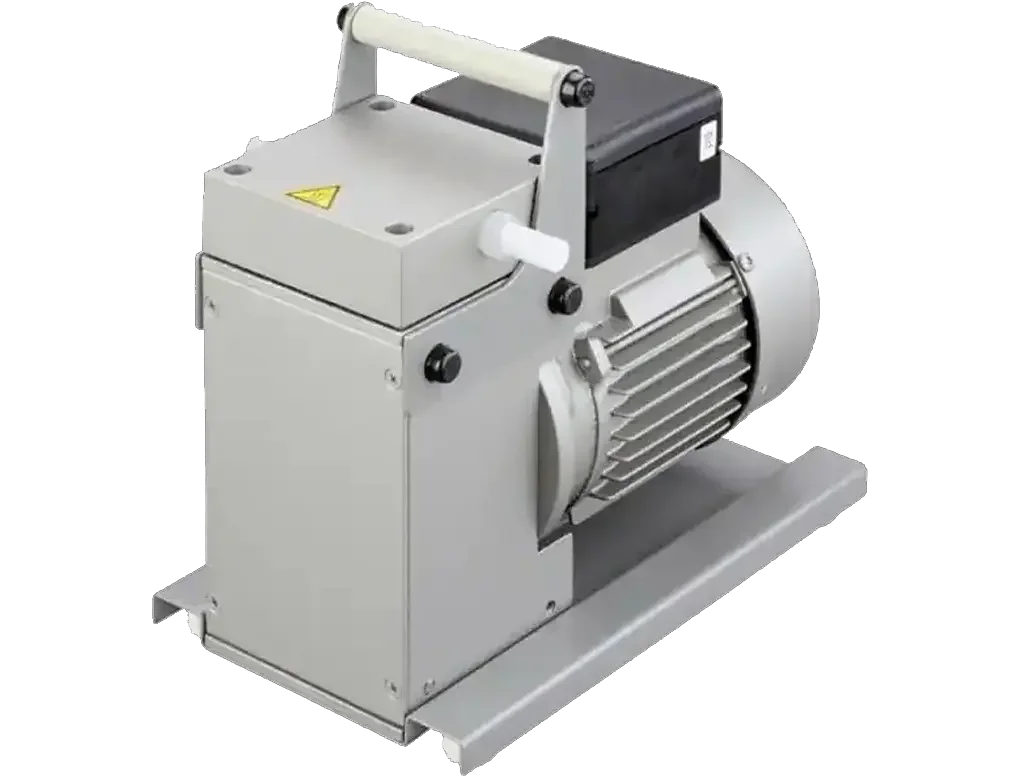

Diaphragm pump MPC 301 E - for chemical applications
It is chemically compatible and resistant to aggressive solvents and acid vapors which are common in laboratories. The diaphragm are made out of elastomer with PTFE layer.
Number of heads / stages: 1/1
Max. pumping speed at 50 Hz (l/min): 38.3
Max pumping speed at 60 Hz (l/min): 41.7
Ultimate pressure in mbar : 75
Wired for: 230V, 50/60Hz
Intake connection: Hose nozzle DN 8
Exhaust connection: Hose sleeve A 10 – 8 or optional (enclosed) Exhaust silencer A 10
Sound level (dB): 45
Dimensions (W/D/H) in mm: 156/260/253
Weight kg : 8.9
