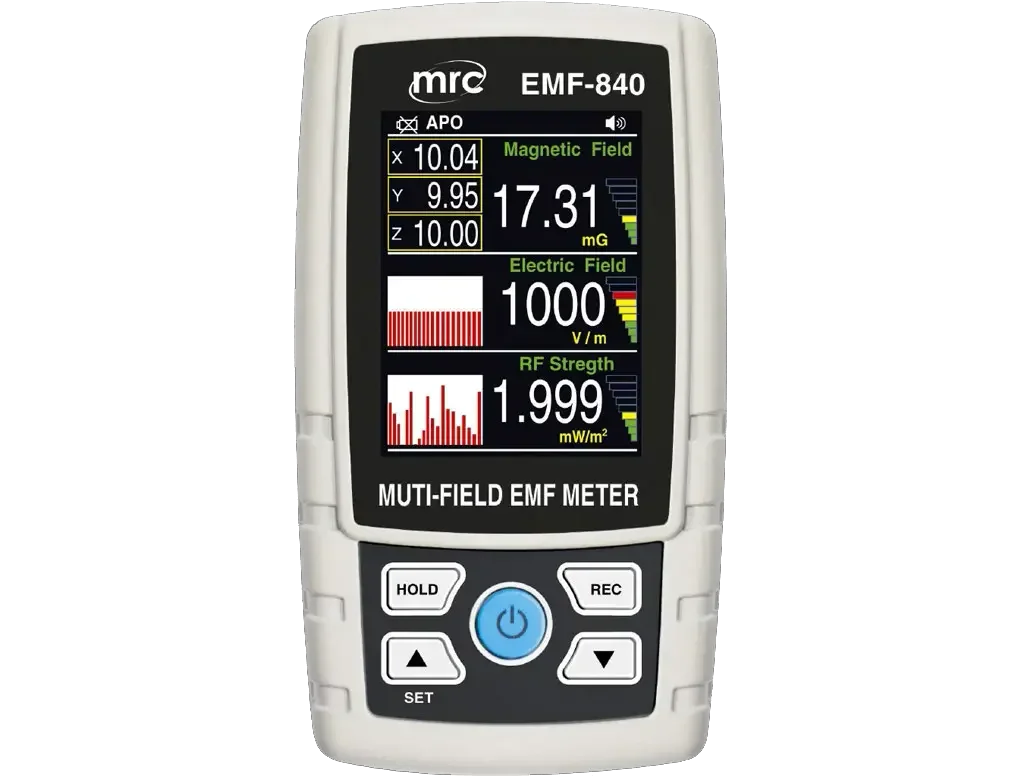

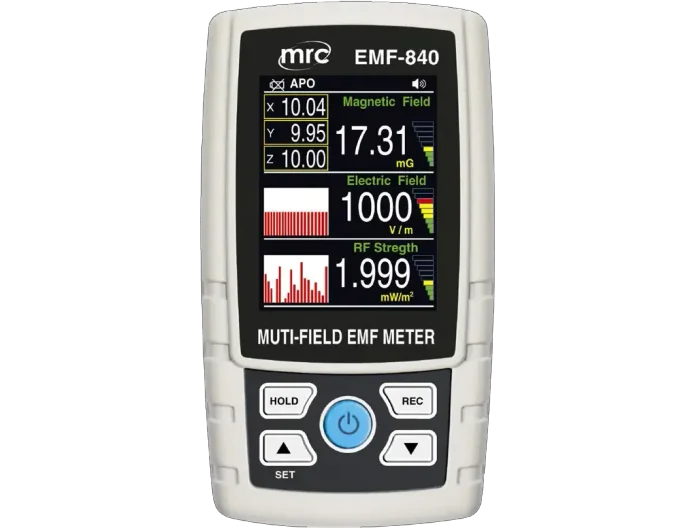

RF Strength/ Magnetic Fields/Electric Fields Meter
For electromagnetic field strength measurement including mobile phone
base station antenna radiation, RF power measurement for transmitters,
wireless LAN ( Wi-Fi ) detection/ installation, wireless communication
applications ( CW, TDMA, GSM, DECT ) and microwave leakage
electromagnetic field radiation levels around power line , home appliances
and industrial devices.
RF power measurement Range/Resolution :
Frequency range : 50 MHz to 3.5 GHz
30.00 mV/m to 11.00 V/m, 0.01, 0.1, 1 mV/m.
0.02 uW/cm2 to 32.09 uW/cm2, 0.01 uW/cm2.
0.02 mA/m to 29.17 mA/m, 0.01 mA/m.
Magnetic Fields Measurement range/Resolution:
Frequency range : 50 Hz to 60 Hz.
mG : 200.0 to 2000, 0.1 mG, 1 mG.
uT: 20.00 to 200.0, 0.01 uT, 0.1 uT.
Electric Fields Measurement range/Resolution :
Frequency range : 50 Hz to 60 Hz.
50 V/m to 2000 V/m, 1 V/m.
