Materials Stainless steel SUS 304

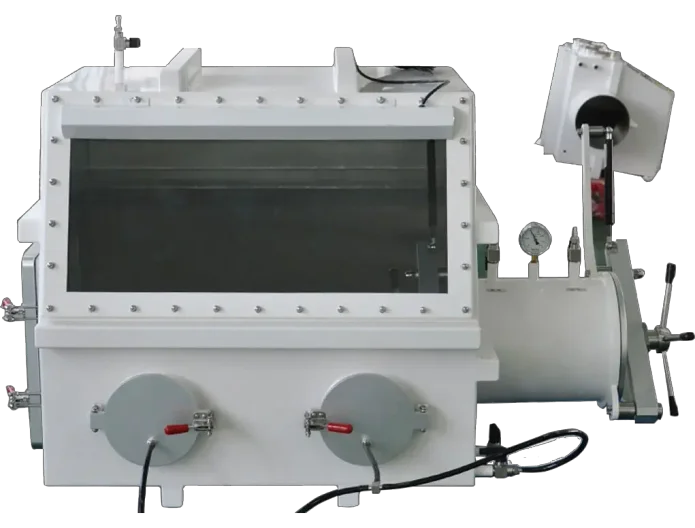

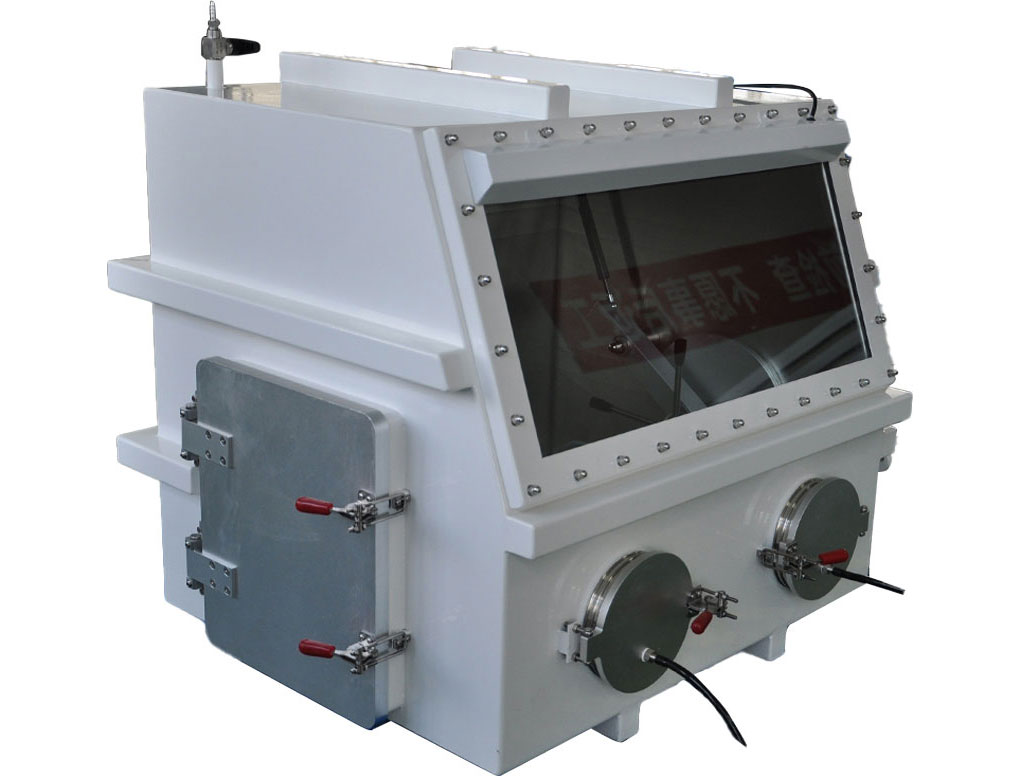

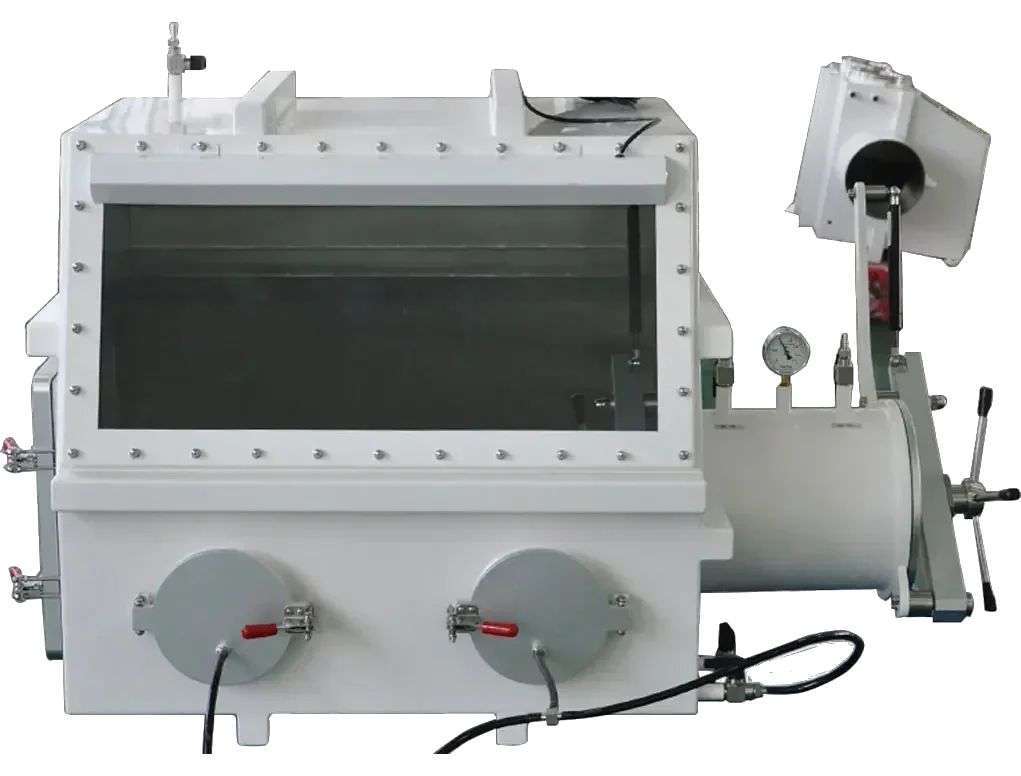

Main chamber Size (mm) 780W*650D*700H

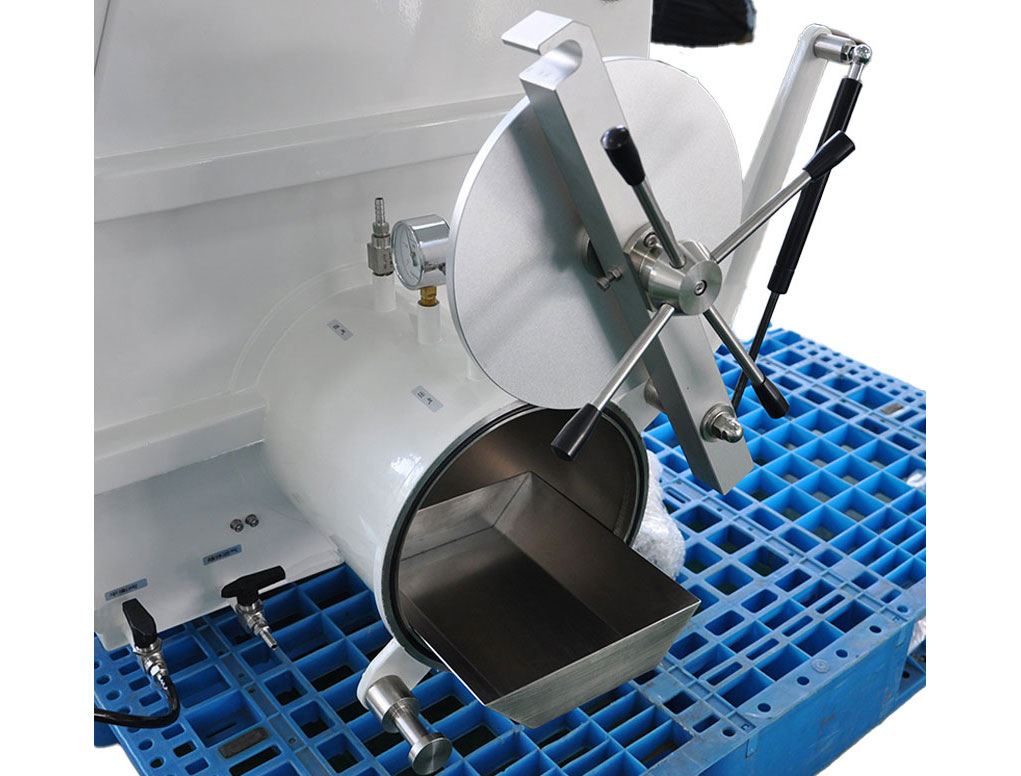

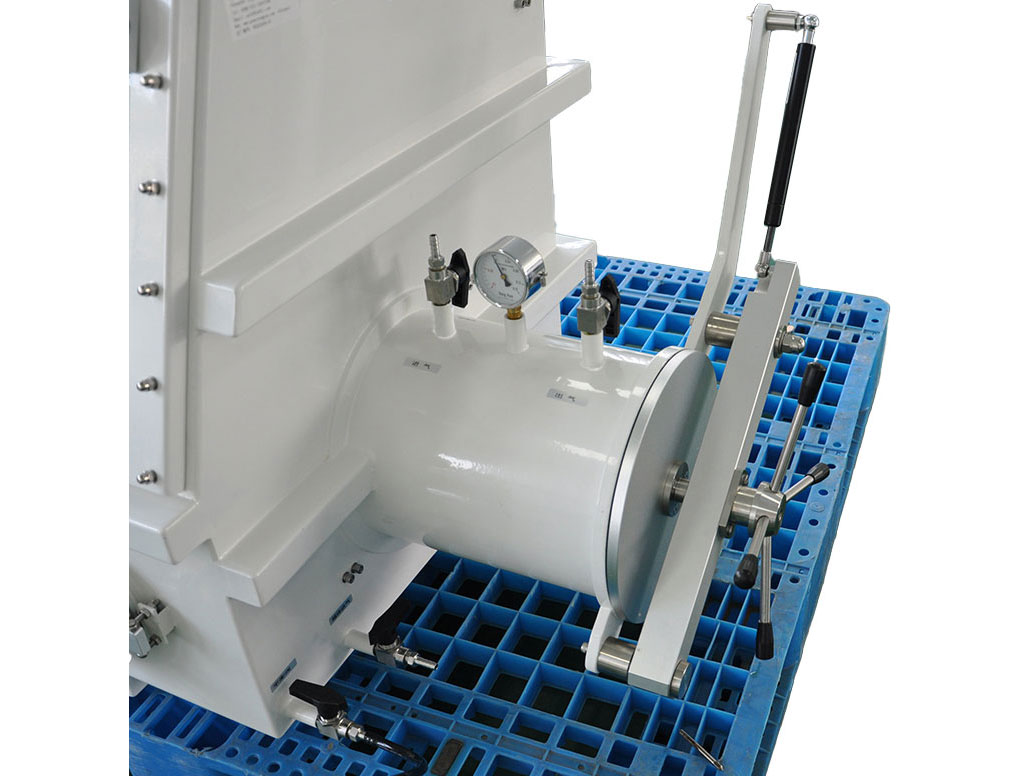

Antechamber Size (mm) Φ240*260L
Main Chamber Pressure Max. Vacuum Level: -0.1MPa
Antechamber Pressure Max. Vacuum Level: -0.1MPa
Observe window size (mm) 315*670mm
Transparent Front Panel Removable tempered window (10mm)
Door Manually operated door 350*300MM
Gloves 1 pairs of Latex gloves 600mm long, fixed with a sealing ring.
Glove Port size 140mm
Lighting System 1 Lighting System (110V~250V), , in front of Window panel
Valves In and out of ball valve made up of stainless steel SUS304
Pressure Gauge 1 Pressure Gauge on Antechamber, Germany WIKA brand
KF Connectors 2No. Standard KF25 connector for optional connection
