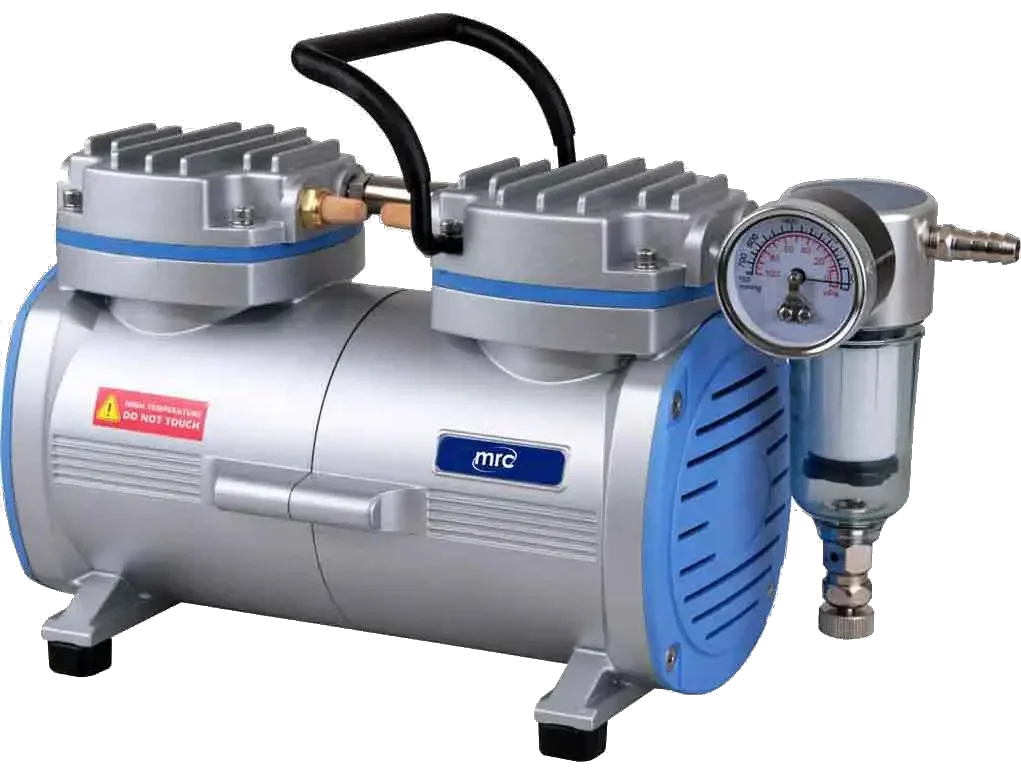

    Vacuum pump,Oil-Free,34L/min,99mbar

    Vacuum pump 34 liter/min 106mbar 3

    Vacuum pump 34 liter/min 106mbar 3

    Oil free laboratory piston vacuum pump
    Power 80watt 1/6 horsepower
    34liter/minute,99miliibar,110torr,-650mmHg,85.5kPa
    Port thread 5/16"
    Eternal dimensions:216*186*165mm
    weight 5.2kg
    Include moisture trap and vacuum regulator
    Overheat protector
    Low noise
    READ MORE >
    • Type: Piston Pump
    CATALOG NUMBER: VP-34
    $0
    • TECHNICAL DATA
    • FUNCTIONS
    • DESCRIPTION
    • ACCESSORIES
    • VIDEOS
    • DOCUMENTATION
    • DOWNLOAD
    • REQUEST A QUOTE
    Type
    Piston Pump
    Max. Flow (l/min)
    34
    Vac. Pressure (mbar)
    106
    Oil free laboratory piston vacuum pump
    Power 80watt 1/6 horsepower
    34liter/minute,99miliibar,110torr,-650mmHg,85.5kPa
    Port thread 5/16"
    Eternal dimensions:216*186*165mm
    weight 5.2kg
    Include moisture trap and vacuum regulator
    Overheat protector
    Low noise

    Operation Manual



    CE



    TECHNICAL DATA

      Operation Manual
      VP-34_OPR.pdf
      CE
      VP-34_CE.pdf
      Type
      Piston Pump
      Max. Flow (l/min)
      34
      Vac. Pressure (mbar)
      106

    FUNCTIONS

    DESCRIPTION

    Oil free laboratory piston vacuum pump
    Power 80watt 1/6 horsepower
    34liter/minute,99miliibar,110torr,-650mmHg,85.5kPa
    Port thread 5/16"
    Eternal dimensions:216*186*165mm
    weight 5.2kg
    Include moisture trap and vacuum regulator
    Overheat protector
    Low noise

    ACCESSORIES

    VIDEOS

    DOCUMENTATION

    Operation Manual



    CE



    DOWNLOAD

    REQUEST A QUOTE

    DIS-1-0235

    Straight connector for PP pumping, made by AZLON, size 7-10 mm

    DIS-1-0237

    Straight connector for PP pumping, made by AZLON, size 6-8 mm

    167300-20

    Hose Barb,1/8 PT, 6/16 in.(9.5mm) for VP-17/19

    Hose Barb,1/8 PT, 5/16 in.( 8mm)
    167300-21

    Hose Barb,1/8 PT, 5/16 in.( 8mm) For VP-17/34

    167300-23

    Hose Barb,1/8 PT, 3/16 in.(4.8mm) for VP-17/34

    167300-24

    Hose Barb,1/8 PT, 2/16 in.(3.2mm) for VP-17/34

    167300-63

    Hose Barb,1/8 PT, 1/4 in.(6.4mm)

    167300-25

    L type connector, 1/8 PT, 5/16 in.( 8mm) for VP-17/34

    Silicon tube 1 meter
    167200-38

    Silicon tube 1 meter for vacuum pumps / chillers

    167300-42

    MUFFER COPPER FOR VP-17

    167301-07

    filter cartridge for VP/CVP serie

    167301-06

    Moisture Trap / Vacuum Regulator for VP-17/19/28/34

    167301-64

    Plastic water trap cup for VP-series pumps

    167801-07

    filter cartridge for Vp-serie
