Vacuum Pumps-Dry

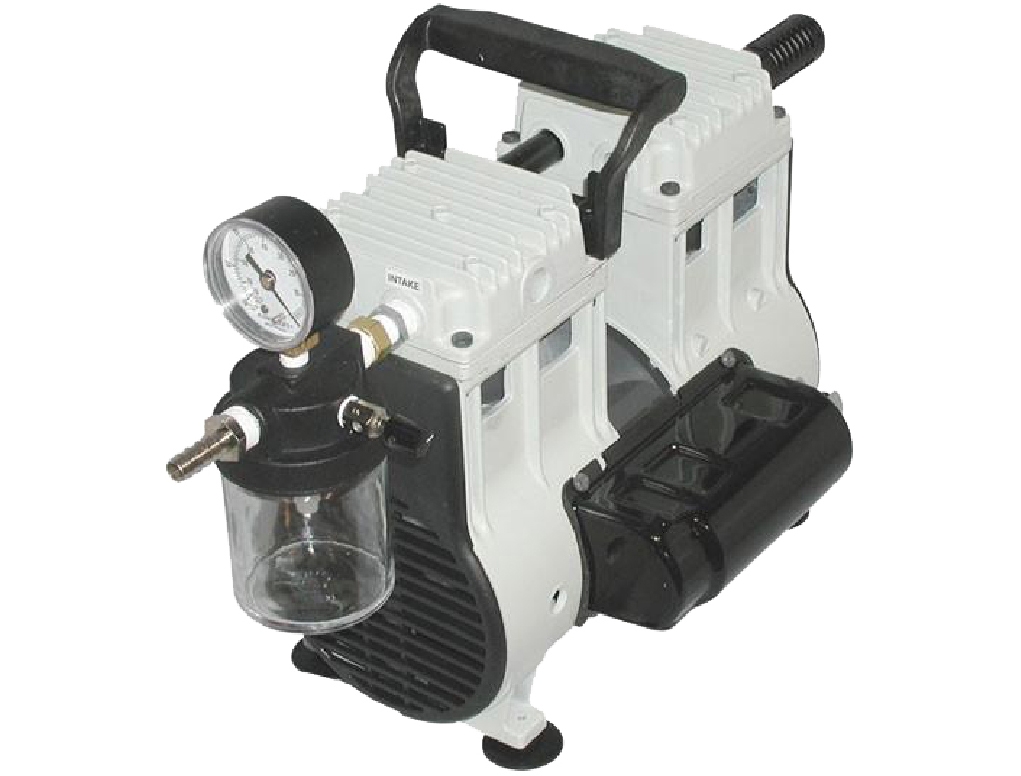

Wob-l Dry Pump, 230V 50Hz 1Ph, CE, Inlet trap, gauge, regulator w/hose barb
Wob-l Dry Pump, 230V 50Hz 1Ph, CE, Inlet trap, gauge, regulator w/hose barb
CFM (L/min) @ 60Hz: 3.5(100)
m3/hr (L/min) @ 50Hz: 4.9(83)
Ultimate Pressure, Torr (mbar): 5(6.7)
Maximum Vacuum, in. Hg: 29.8
Motor Horsepower (watts): 1/3(250)
Overall Dimensions:
L in. (cm): 17(43.2)
W in. (cm): 7.5(19.1)
H in. (cm): 12(30.5)
READ MORE >
Type:
Piston Pump
CATALOG NUMBER:
2581C-50
$
0
ADD TO BAG
TECHNICAL DATA
FUNCTIONS
DESCRIPTION
ACCESSORIES
VIDEOS
DOCUMENTATION
DOWNLOAD
REQUEST A QUOTE
Type
Piston Pump
Max. Flow (l/min)
83
Vac. Pressure (mbar)
6.7
CFM (L/min) @ 60Hz: 3.5(100)
m3/hr (L/min) @ 50Hz: 4.9(83)
Ultimate Pressure, Torr (mbar): 5(6.7)
Maximum Vacuum, in. Hg: 29.8
Motor Horsepower (watts): 1/3(250)
Overall Dimensions:
L in. (cm): 17(43.2)
W in. (cm): 7.5(19.1)
H in. (cm): 12(30.5)
Specifications
TECHNICAL DATA
Specifications
2534C-02_SPEC.pdf
Type
Piston Pump
Max. Flow (l/min)
83
Vac. Pressure (mbar)
6.7
FUNCTIONS
DESCRIPTION
CFM (L/min) @ 60Hz: 3.5(100)
m3/hr (L/min) @ 50Hz: 4.9(83)
Ultimate Pressure, Torr (mbar): 5(6.7)
Maximum Vacuum, in. Hg: 29.8
Motor Horsepower (watts): 1/3(250)
Overall Dimensions:
L in. (cm): 17(43.2)
W in. (cm): 7.5(19.1)
H in. (cm): 12(30.5)
